1．Download：
【32Driver】 【64Driver】 【Software】 【Manual】
2．Accessories：
|
Product |
Oscilloscope |
|
Probe
|
USB cord |
|

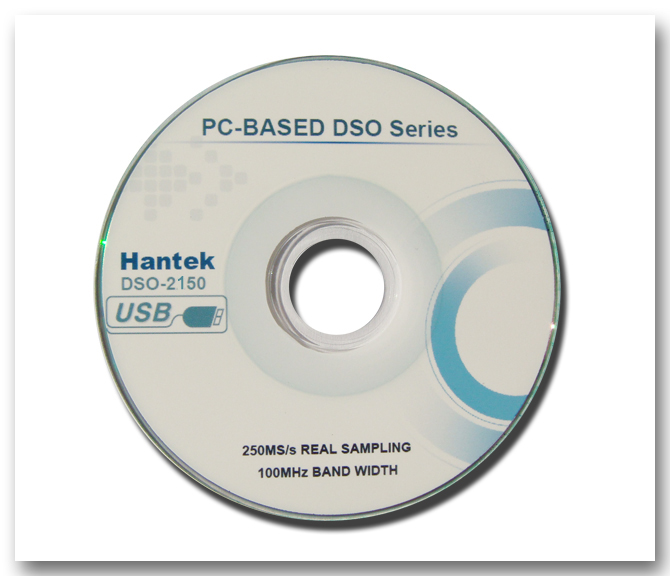

S/W CD |
manual |
3.other pictures
4. Characteristic
- USB2.0 interface, no external power source required, easy to use.
- be suitable for notebook computer，product line maintenance，be used easily on business.
- Dimensions (mm):190(L) x100(W) x35(H), be carried easily.
- High performance, 150MS/s real-time sampling, 60MHz Bandwidth.
- Operating System: Windows98,Windows Me, Windows NT, Windows 2000, Windows XP ,VISTA
- 23 measurement functions, PASS/FAIL Check, be suitable for technical application.
- Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
- Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.
- FFT
- One computer can connect many DSO, extend channel easily.
- Labview\VB\VC\Delphi\C++Builder Second Design instance.
5. Hardware Specification
|
Channel |
2 Channels |
|
Impedance |
1MΩ 25pF |
|
Coupling |
AC/DC/GND |
|
Vertical resolution |
8Bit |
|
Gain range |
10mV-5V, 9Steps |
|
DC accuracy |
±3% |
|
Timebase range |
4ns-1h, 38 Steps |
|
Vertical adjustable |
Yes |
|
Input protection |
Diode clamping |
|
X-Y |
Yes |
|
Autoset |
Yes (30Hz to 60MHz) |
|
EXT. input |
Yes |
|
Trigger Mode |
Auto, Normal and Single |
|
Trigger Slope |
+/- |
|
Trigger level adjustable |
Yes |
|
Trigger Type |
Rising edge, falling edge |
|
Trigger Source |
CH1, CH2, EXT |
|
Pre/Post trigger |
0-100% |
|
Buffer size |
10K-32KB/Channel |
|
Shot bandwidth |
DC to 60MHz |
|
Max. Sample rate |
150MS/s |
|
Sampling selection |
Yes |
|
Waveform Display |
port/line, waveform average, persistence, intensity |
|
Network |
Open/Close |
|
Vertical mode |
CH1, CH2, Dual, ADD |
|
Cursor measurement |
Yes |
|
Spectrum analyzer |
|
Channel |
2 Channels |
|
Math |
FFT, addition, subtraction, multiplication, division. |
|
Bandwidth |
60MHz |
|
Cursor |
Frequency, Voltage |
|
Data Samples |
10K-32K/Channel |
|
Accessories |
S/W CD, probes, manual, USB cord |
6．Software：
Operating system: Windows98, Windows Me, Windows NT, Windows 2000,
Windows XP, VISTA.
7．SecondDesign：
Supply DEMO code (VC、CVI、VB、LABVIEW) and technical support.
